Kimnach's 1988 IROC-Z

Original Wiring Diagram

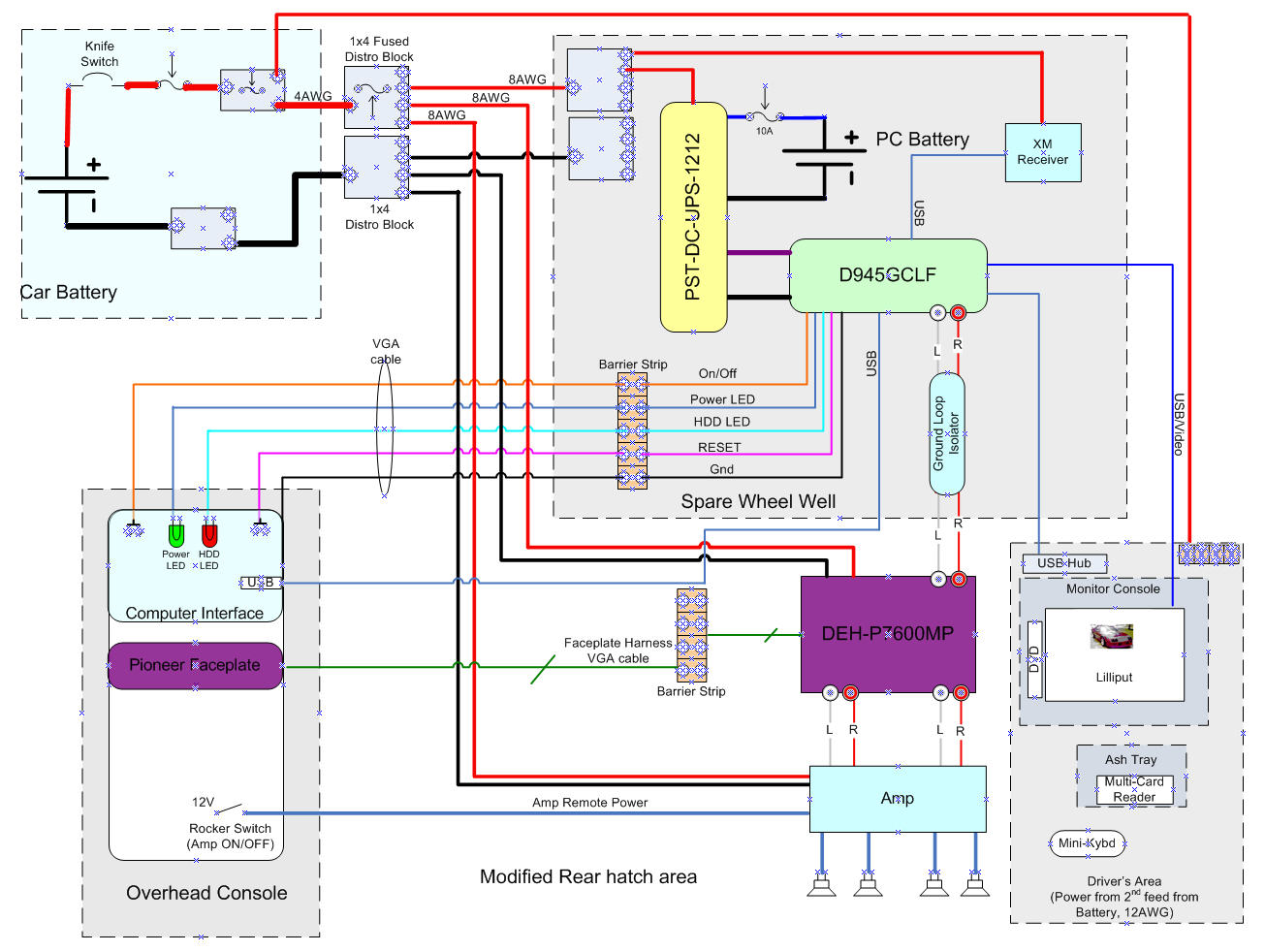

My original plan for the installation of the audio and carputer system, shown in the drawing below, assumed that carputer would be installed in the spare wheel well area the audio equipment in the rear hatch area.  As all plans seem to, this one was changed.  The picture is self-explanatory and will not be discussed (for now).
